A Data Center Cooling System CFD analysis is a vital computer simulation used by engineers to ensure that powerful servers do not overheat. The goal is to design an efficient and reliable cooling system. Using a rapid simulation tool like ANSYS Discovery, a Center Cooling CFD Simulation can be performed in the early design stages.

This early-stage CFD analysis allows engineers to visualize airflow patterns, predict room temperatures, and identify potential hot spots before any equipment is installed. A Data Center Thermal Management simulation is the best way to test different layouts and optimize the design for effective airflow management, ensuring the data center operates safely and efficiently. For more HVAC CFD simulation tutorials, please visit https://cfdland.com/product-category/application/hvac-cfd-simulation/.

Figure 1: A photograph of a real-world data center, showing the layout of server racks and cooling infrastructure.

Simulation Process: ANSYS Discovery Setup for Data Center Thermal Management

The simulation process began with the 3D design of the data center, which was imported directly into ANSYS Discovery. The physics for the thermal management analysis were then defined. The initial temperature for the entire room was set to a baseline of 22°C.

To model the cooling system, the cool air inlet was defined with an air velocity of 0.65 m/s and a temperature of 18°C. To simulate the heat produced by the servers, each rack was configured as a heat source, injecting hot air into the room at a speed of 0.5 m/s and a temperature of 47°C. The primary engineering goals for this Data Center Cooling Simulation were to verify good airflow management, check for any potential hot spots, and confirm that the hot exhaust air does not mix with the cold intake air.

Figure 2: The 3D geometry of the data center used for the ANSYS Discovery CFD simulation, showing the server racks and air inlet.

Post-processing: Analysis of Airflow Management and Thermal Stratification

The simulation results show a highly effective airflow management inside the data center. The velocity streamlines in Figure 3 clearly display the path of the air. We can see that the cool air enters from the inlet, flows very smoothly between the server racks, and moves directly towards the outlet. The most important result here is the complete prevention of recirculation zones. This is a major design success. It means that hot air from the server exhaust does not loop back and mix with the cool air at the inlets. This design ensures that all servers receive a constant supply of fresh, cool air, which is critical for their operation.

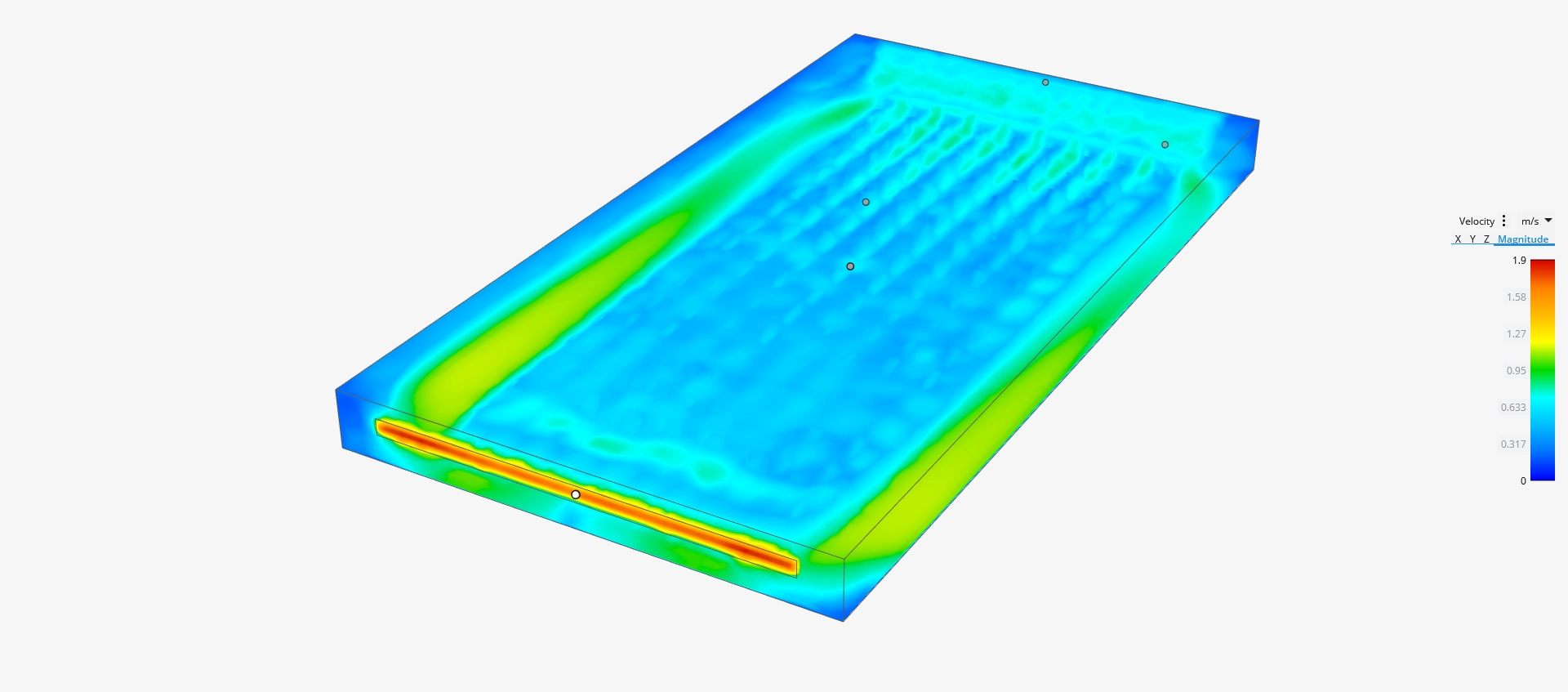

Figure 3:  Velocity streamlines & contour showing the smooth path of air from the inlet to the outlet, highlighting the successful prevention of recirculation zones.

The thermal analysis also confirms the excellent performance of the cooling design. The temperature results in Figures 4 and 5 show a perfect separation between hot and cold air. This layering effect is called thermal stratification. The cool air, shown in blue, stays at the bottom of the room where the servers can pull it in. The hot air, shown in yellow and orange, rises to the top of the room and is guided away. This successful thermal management proves that the hot-aisle/cold-aisle layout is working as intended. This effective heat removal prevents the formation of dangerous hot spots and guarantees the data center operates at safe temperatures.

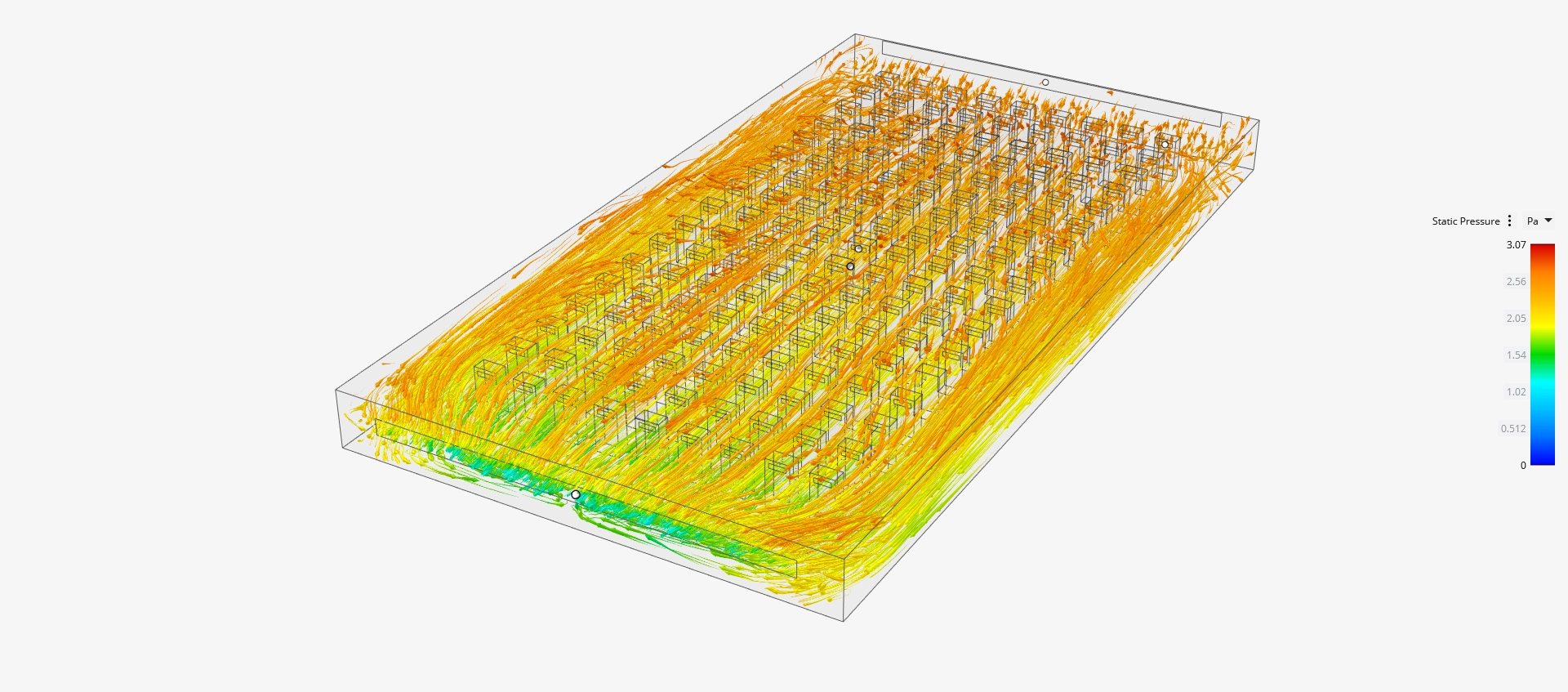

Figure 4: Temperature shown on airflow streamlines, visualizing how cool air (blue) heats up as it passes through the server racks.

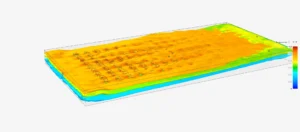

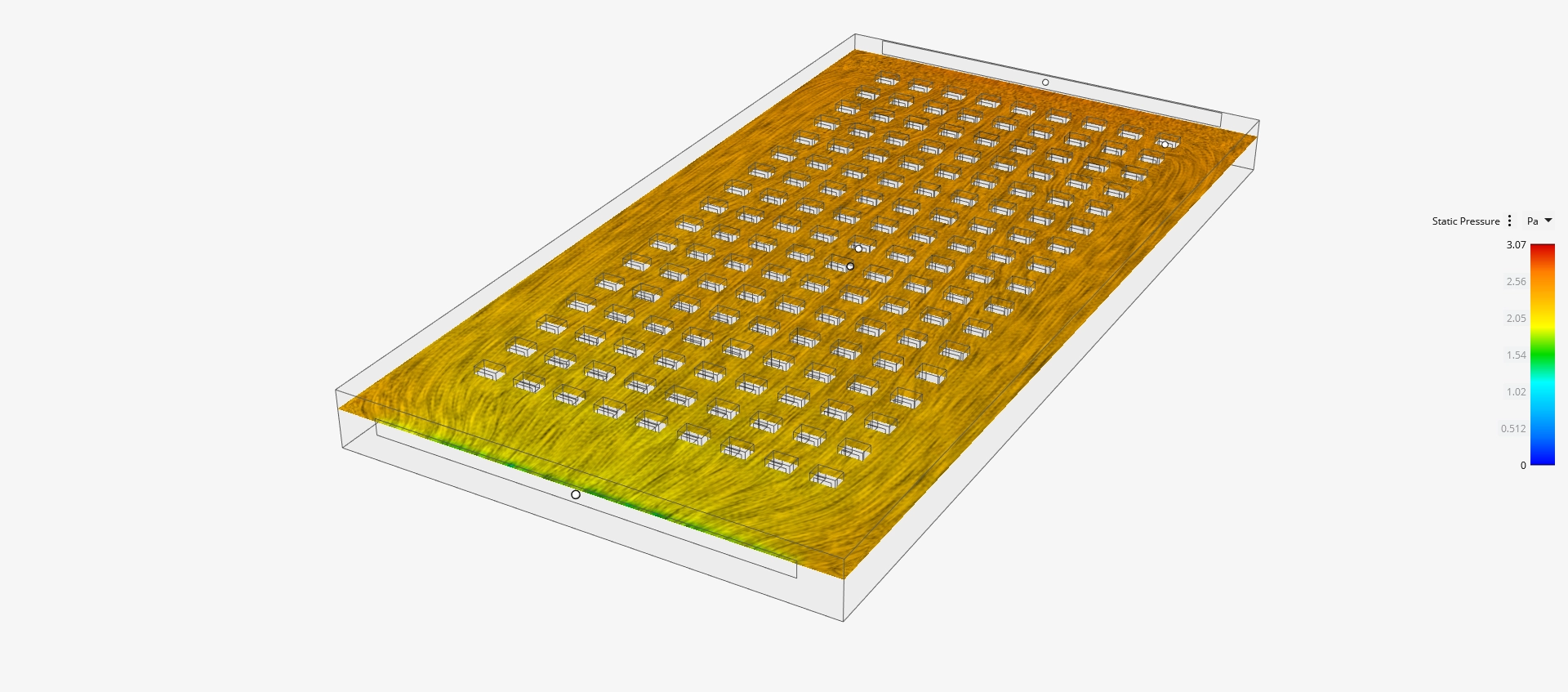

Figure 5: A cross-section view of an aisle showing temperature contours, confirming that hot air (yellow/orange) rises above the cool intake air (blue).
