Thermal conductivity is a material property that tells us how well it moves heat. A Thermal Conductivity Effect On Heat Transfer CFD simulation is a very important tool for engineers. It helps them see how different materials manage heat. Some materials, like metals, are good heat movers. Others, like plastic or foam, are good heat stoppers. Understanding this is key for thermal management in products like computers, engines, and buildings. Using ANSYS Fluent, we can run a Conjugate Heat Transfer (CHT) analysis. This special simulation shows us how heat moves from a solid object into the air around it. This study of the Thermal Conductivity Effect in Fluent will compare two materials to see how one simple property can change the entire heat transfer process.

Simulation Process: Fluent Setup, Modeling Conjugate Heat Transfer (CHT)

To begin our simulation, we created a 2D model of a cylinder inside a large box of air. Using ANSYS Meshing, we made a high-quality, structured grid with 48,300 cells. A structured grid gives very accurate results for this kind of problem. A heat source of 25,000 W/m² was placed at the center of the cylinder. We then set up two different cases. In the first case, the cylinder was made of a material with low thermal conductivity. In the second case, the cylinder material had a thermal conductivity that was 10 times higher. This setup allows us to perfectly compare how conduction inside the solid changes the convection in the surrounding air.

Figure 1: The structured mesh used for this Conjugate Heat Transfer CFD analysis in ANSYS Fluent.

Post-processing: CFD Analysis, Visualizing Heat Spreading and its Effect on Flow

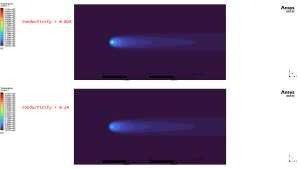

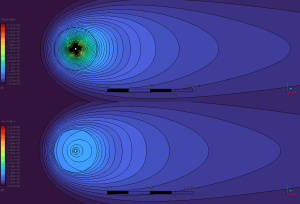

The temperature contour provides a clear, professional visual of how thermal conductivity changes everything. We compared a material with low conductivity (k = 0.024) to one with high conductivity (k = 0.24). Both simulations reached the same peak temperature of 373.1 Kelvin right at the heat source. However, the high-conductivity material acts like a “heat spreader,” moving the heat easily through the whole cylinder. This creates a wider, more even hot spot. The low-conductivity material acts like a “heat stopper,” trapping the heat in a small, very intense spot. This professional visual shows that the temperature drops much faster in the low-conductivity case.

Figure 2: Temperature contours from the Thermal Conductivity Effect CFD simulation, comparing the heat spreading in low-k and high-k materials.

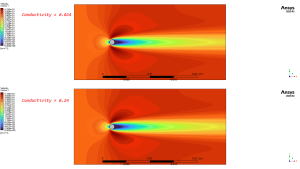

The velocity contour tells the second half of the story, showing how the solid cylinder changes the air flow around it. The hot surface of the cylinder heats the air, causing it to rise in a process called natural convection. Because the high-conductivity cylinder spreads its heat over a larger area, it creates a wider and longer plume of rising warm air. The professional visual shows that while the maximum air speed was the same in both cases (0.4155 m/s), the shape of the flow was completely different. The high-conductivity case created a much larger region of moving air. The most important achievement of this simulation is the clear demonstration of how a single material property—thermal conductivity—directly controls both the heat distribution inside a solid and the resulting natural convection flow in the surrounding fluid, providing the exact data engineers need for effective thermal management.

Figure 3: Velocity contours from the Conduction and Convection Fluent analysis, showing how thermal conductivity affects the natural convection plume.
